standard signs (Netherlands market)
Nabasco Sign has developed signs for the Dutch market, which are available ‘off the shelf’. They are a good representation of what can be done using sustainable bio-composite material. If you are looking for different sizes or different technical requirements (wind load, snow load, etc.), we can develop these for you: read more.
Download the standard size list here: NABASCOSIGN-Standard Products March 2022
Round 600 mm
4 inserts M8, 140mm stitch size

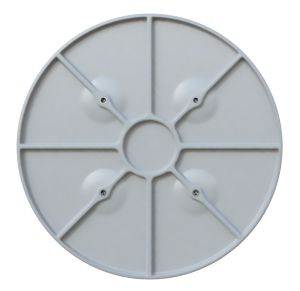

Round 400 mm
4 inserts M8, 140mm stitch size
Triangle 700 mm
4 inserts M8, 140mm stitch size
Triangle 700 mm 90 deg left
4 inserts M8, 140mm stitch size
Triangle 700 mm 90 deg right
4 inserts M8, 140mm stitch size

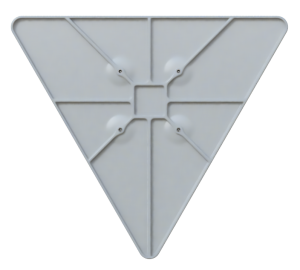

Triangle 700 mm 180 deg
4 inserts M8, 140mm stitch size

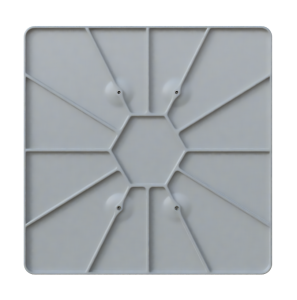

Square 600 mm
4 inserts M8, 140mm stitch size

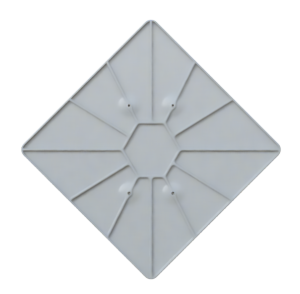

Square 600 mm 45 deg
4 inserts M8, 140mm stitch size
Rectangle 600 x 200 mm
4 inserts M8, 140mm stitch size
Rectangle 200 x 600 mm
4 inserts M8, 140mm stitch size

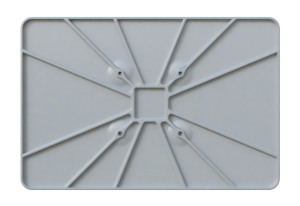

Rectangle 600 x 400 mm
4 inserts M8, 140mm stitch size

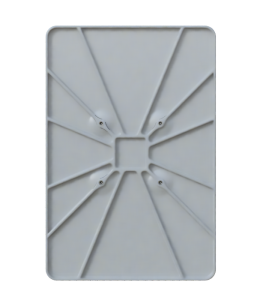

Rectangle 400 x 600 mm
4 inserts M8, 140mm stitch size
Rectangle 530 x 670 mm
4 inserts M8, 140mm stitch size
Square 450 x 200 mm
contact us for technical info and images
4 inserts M8, 140mm stitch size
Square 200 x 450 mm
contact us for technical info and images
4 inserts M8, 140mm stitch size
Square 600 x 300 mm
contact us for technical info and images
4 inserts M8, 140mm stitch size
Square 300 mm x 600 mm
contact us for technical info and images
4 inserts M8, 140mm stitch size
custom signage & country specific
Many European countries have different sizes and technical requirements for their traffic signs. As Nabasco Sign has all technical expertise in-house to develop custom series, we guide our European clients to develop size specific series for local market. Each sign can be made to bespoke wind-speed, snow load and other technical requirements.
Together with local partners, we can design custom sign, have the signs tested, certified and production started. To determine technical suitability we use a.o. FEA Analysis methods, and mechanical testing procedures (for inserts etc).
certificates & testing
All our products meet European norms 12899-1 and Dutch norms NEN 3381.
Declaration of Performance: DOP 00.020.163-01 Bio composiet
Cradle-to-Cradle Certificate: Nabasco Bio-Composite Certificate
ISO 9001 Certication: ISO 9001 Certificate
ISO 14001 Certification: ISO 14001 Certification
